Instant price on the whole welded assembly.

Upload a STEP of a frame, bracket or weldment. The engine reads every part and every weld, prices it and draws the full shop set, free. Push go and the shop cuts, bends and welds it.

Have a drawing?Or a model. Drop it, get a price. Have a set?Metal takeoff. Have an idea?Conjure it in the plan room.
Free to try. Free shipping on boxed parts. [email protected]

CutBendWeldShip

Conjure The plan room.

Give us your ideas, your napkin sketches, your wants. We'll set them free in steel.

Sketch it, snap it, say it. The QUOTE$MITH draws it, the engine prices it, we build it. No CAD needed.

  • A real 3D model. Turn it, change it, until it's right.
  • The real engine price. The same price and drawing set as an upload, free.
  • Then we build it. Nothing is cut until you sign the drawings.
  • Metal takeoff. Drop the set. Get the metals, listed by sheet and priced.
Start conjuring

Metal takeoff

Drop the set. Get the metals, listed by sheet and priced.

Every line carries the sheet it came from. Anything the drawings don't show comes back as a question. Small items price right away; stairs, rails and structural steel get a look from the shop before the price is final. Other trades are listed, not priced. The list is free, no account needed.

Try a metal takeoff
Paul

Make me a console frame for the hall. 66 long, 8 deep, 26 high.
Thin and clean, black. Nothing chunky.

QUOTE$MITHOn it. 1 in square tube legs, 3/4 in square tube rails at three levels, welded and ground smooth, powder coat black. Drawing it now.

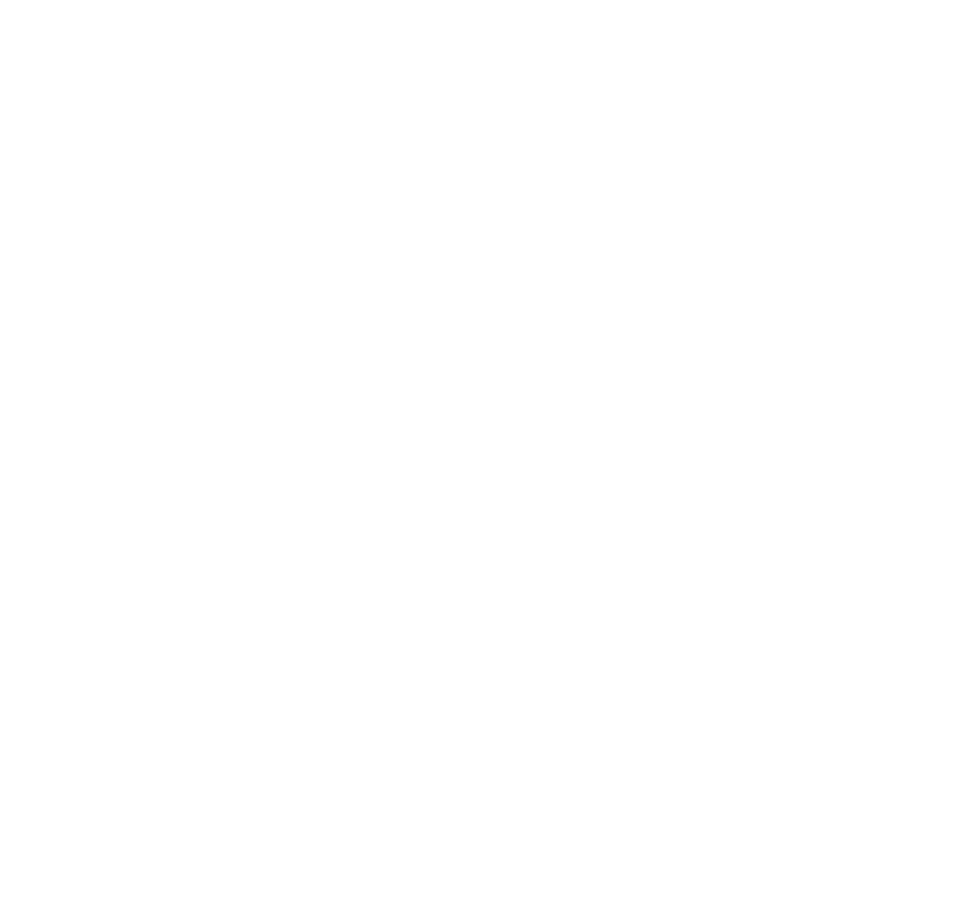

Console frame in square tube, three rail levels

3D model, shop drawings, engine price

Barn owner

I need a truss system for my barn. Steel beams and drop channels, 50 foot span.
Welded clips to hold the timber roof purlins.

QUOTE$MITHGot it. Channel top and bottom chords, tube webs, plate gussets bolted at the heels and the peak, a welded clip at every purlin. Each truss in two halves, spliced at the peak. Drawing the set now.

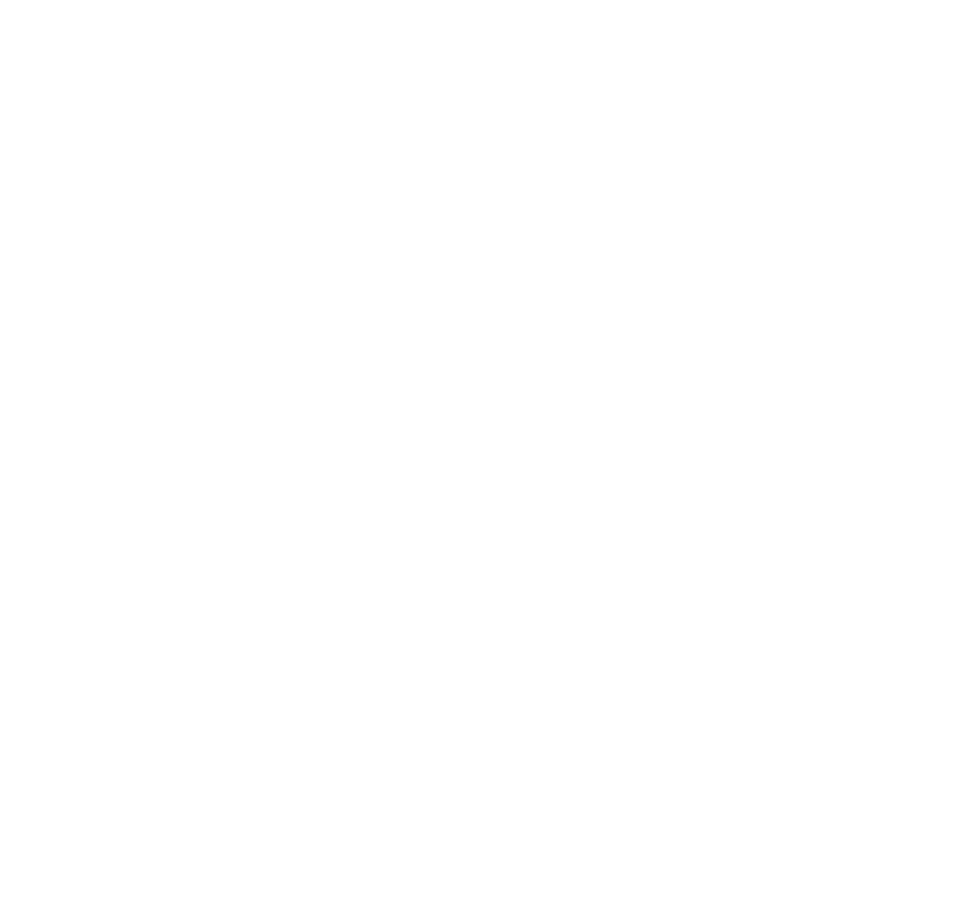

Steel roof truss with plate gussets and purlin clips

3D model, shop drawings, engine price

Architect

I need a stair that climbs 13 feet and wraps back on itself. 36 wide.
Four step winder through a 180 turn.

QUOTE$MITHDone. Channel stringers, 36 in pan treads, a four step winder through the 180 on one 6 x 6 post, guard rail both sides, 13 ft rise. Drawing the set now.

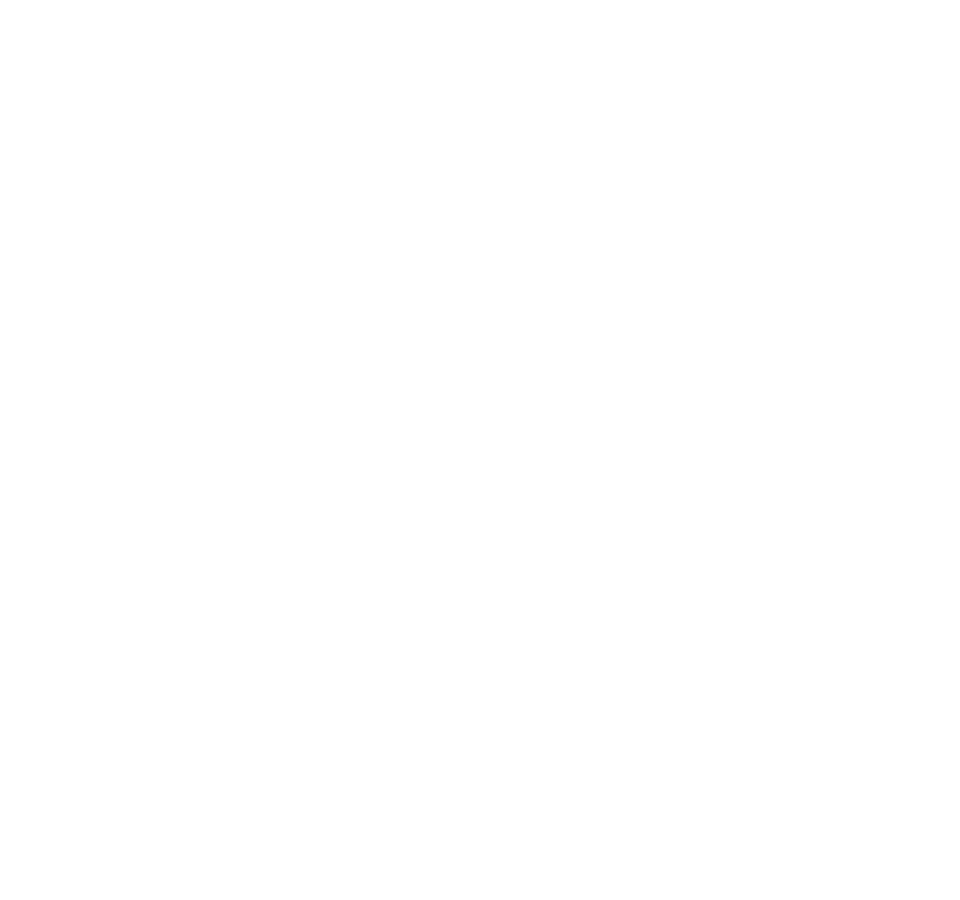

Steel stair with a four step winder and a 180 turn

3D model, shop drawings, engine price

The Cut Bend Weld Go logo, cut and folded from one sheet of steel, shown on the shop's fixture table. The piece is rendered from the shop's 3D model

We do the work first.

  1. UploadDrop in a STEP file. Pick the metal and the finish.
  2. Watch it runThe engine reads the part, prices it and draws it. That part is free.
  3. Order itWe cut, bend and weld it, and your STEP file and drawings come with it.

Stairs, frames and other large weldments get the full drawing set and a talk with the shop before any money moves.

Five jobs. One minute.

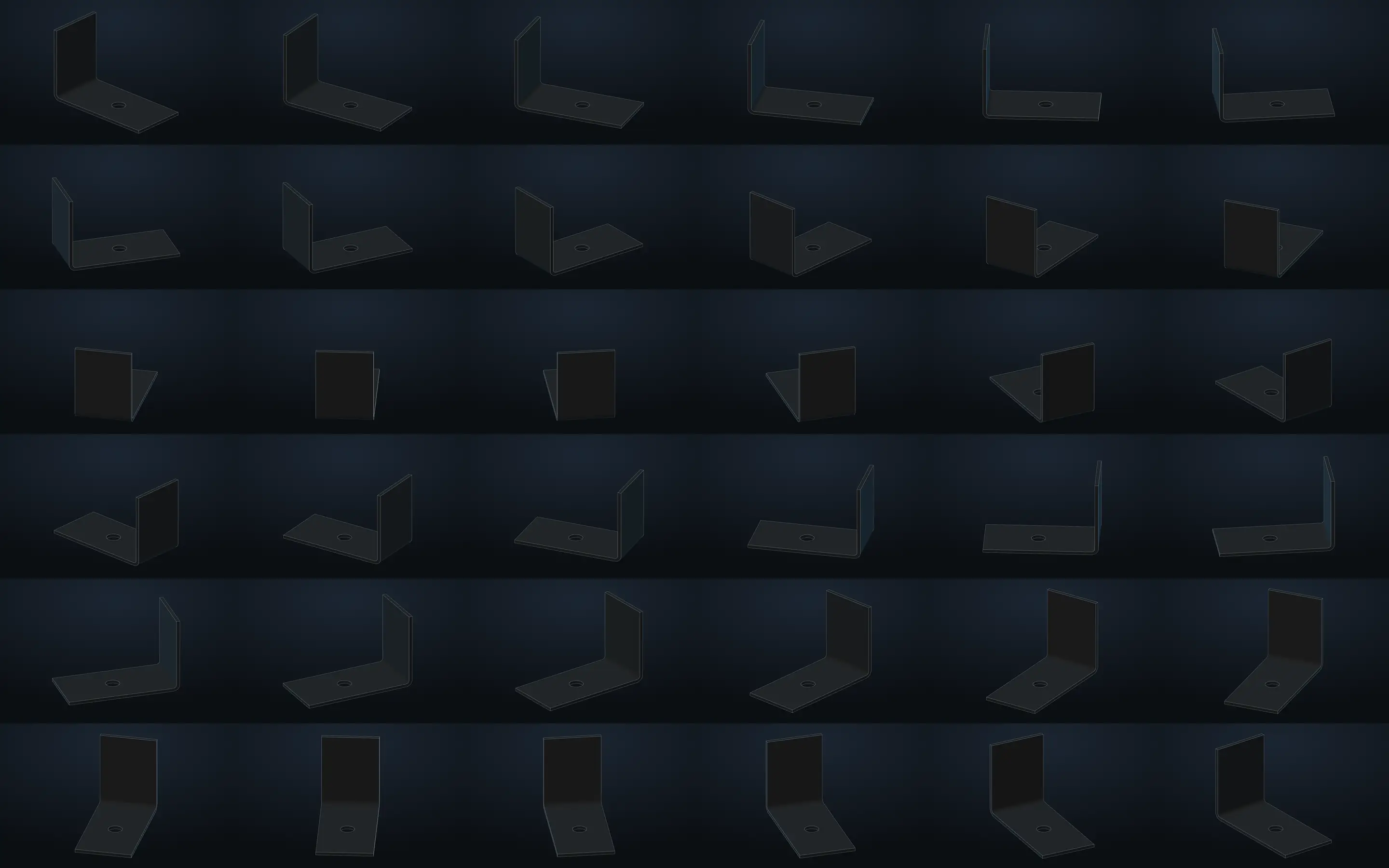

Real models through the engine: read, colored, priced and drawn. A bracket and a staircase take the same five steps.

Real models, read, priced and drawn by the live engine. Yours is worked out from your own model.

Carbon steel, stainless and aluminum. One part or a production run. Stairs, rails, frames, brackets, enclosures and bent tube.

Fresh from the shop

BROKE IN THE FIELD? WE MAKE THE PART. Say what broke. Get a drawing and a price, then we cut, bend and weld it.
GUARDS. PANS. PANELS. Perforated, formed and welded to your drawing.
THE RAIL IS THE DETAIL. Blackened, painted or stainless, made to your detail.
HEAVY PLATE. CLEAN EDGES. Stringers and landings cut, bent and welded in our shop.
PROTOTYPE IN YOUR HAND. One part or fifty. Sketch it, say it or drop a STEP.

Made here.

Brackets, bent tube and formed parts, from the first cut to the box. Then the heavy work.

Price, drawings, go.

  • Up to $2,500Paid in full. Plain sheet and plate parts go straight to the floor and ship in 7 to 10 days. Welded, tube and rolled parts are confirmed by the shop first.
  • Up to $10,00050 percent down. The shop confirms within one business day, and the balance is due before it ships.
  • Over $10,000Large weldments, stairs and frames. The full drawing set first, then terms and a schedule set with the shop. No money online. 2 to 3 weeks.

Nothing is cut before you sign the drawings. Free shipping on boxed parts. Big welded work ships by truck at one delivered price, shown before you pay. Or pick it up at the shop.

Can I get an instant price on a welded assembly?
Yes. Upload a STEP of the whole assembly. The engine finds every part and every weld joint and prices the finished weldment, not just the flat parts. Welded orders are confirmed by the shop before they go to the floor.
What files does it take?
STEP files (.step or .stp), up to 95 MB each. One file per assembly, or several files in one project.
What do the free drawings include?
A cover sheet with every piece marked, plan and elevations, a kit of parts, a sheet for each formed piece with its flat blank and bend table, and a weld map. You sign the customer sheets before anything is built.
What materials and sizes?
Carbon steel, stainless and aluminum. Plate up to 1 inch thick, from sheets up to 5 by 10 feet. Square and rectangular tube, bent tube and formed sheet.
How fast?
Small work ships in 7 to 10 days. Large weldments run 2 to 3 weeks after you sign the drawings.
Do I have to talk to anyone?
Not for plain sheet and plate parts under $2,500: upload, check the drawings, push go. Welded, tube and rolled work gets a confirmation from the shop within one business day. Jobs over $10,000 get a call before any money moves.
How do I pay?
By card, on Stripe's secure checkout page when you order. Jobs up to $2,500 are paid in full. Larger jobs are 50 percent down, with the balance before it ships. Your card is held, not charged, until the shop's review closes.
Do I get the STEP file?
Yes, with your order. Conjure, the 3D model and the price are free to try. When you order, the production STEP file and the full drawing set are yours.
Is shipping included?
Yes on boxed parts: ground shipping is free, and faster shipping costs the difference. Big welded work that ships by truck gets one delivered price for your ZIP, shown before you pay. Pick it up at the shop and you get a credit. Orders under $50 in parts add $15.
Where is it made?
In our own shop in the USA.
